TUI Travel Agency Innsbruck Sillpark – illuminated advertising
Illuminated signs and images
Description

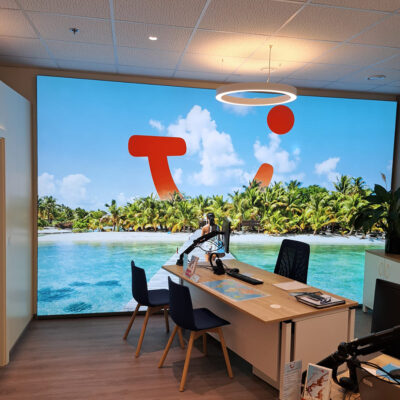

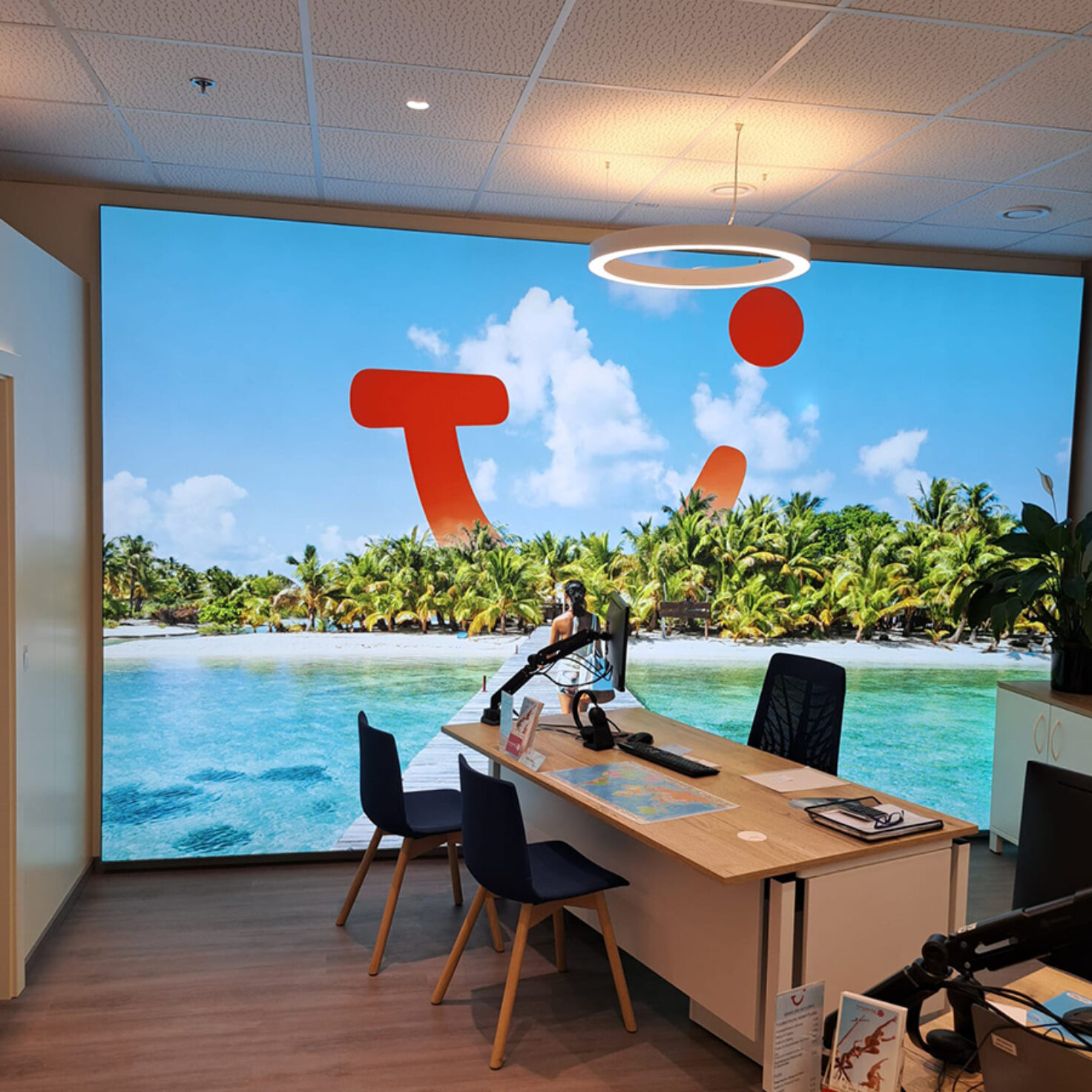

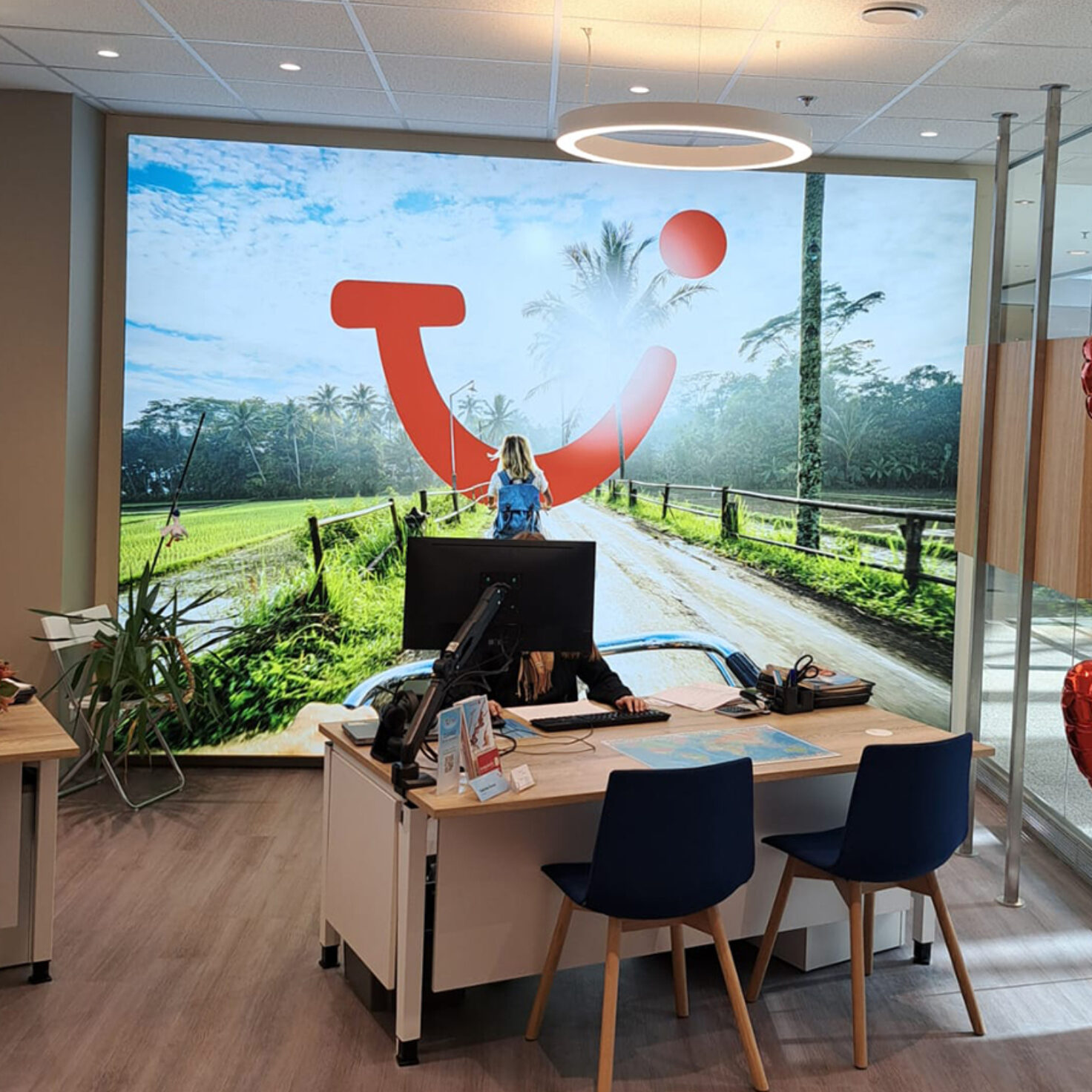

Illuminated images:
- Frame made of high-quality aluminum profile, silver anodized
- Rear panel: aluminum composite panel
- Front: printed display stretch fabric
- Illumination via rear panel LED technology
- Height 2,740 mm
- Width 3,800 and 4,500 mm

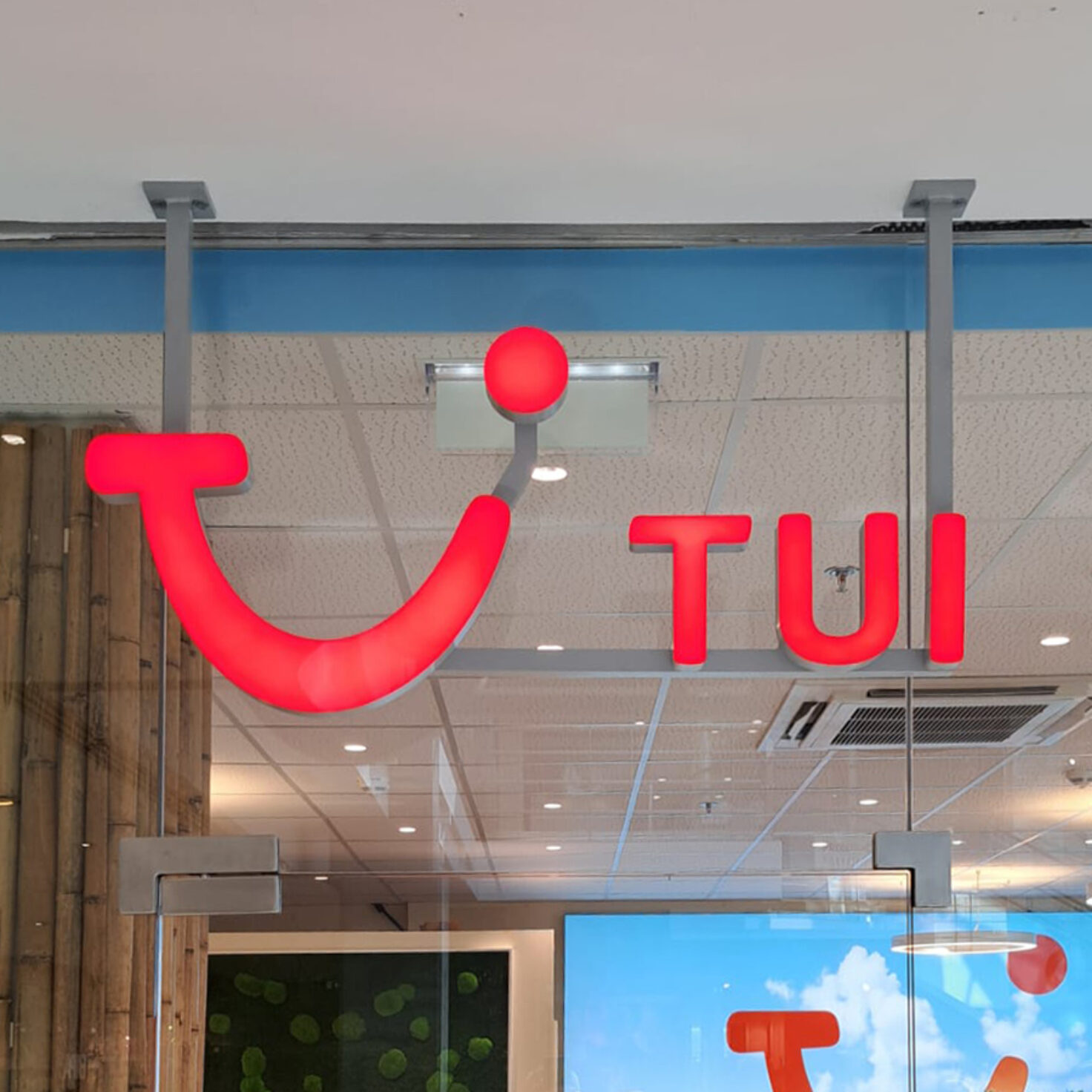

Illuminated entrance sign:
- Side panels and rear panel, painted aluminum
- Front: red acrylic glass
- Illumination via dimmable LED technology
- Light emission from the front
- Letter height 500 mm
- Length 1,150 mm
- Depth 40 mm
- Suspended installation, including substructure

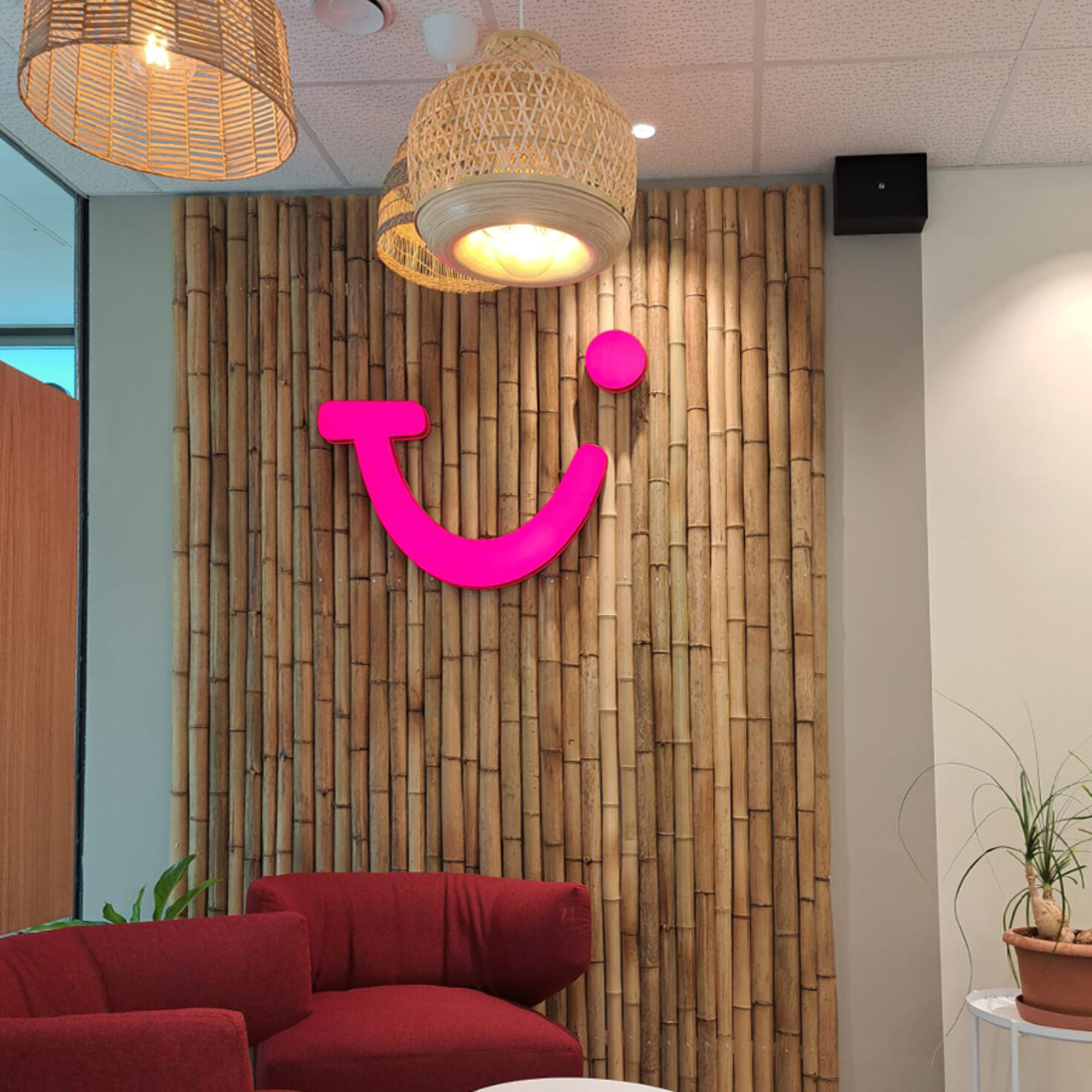

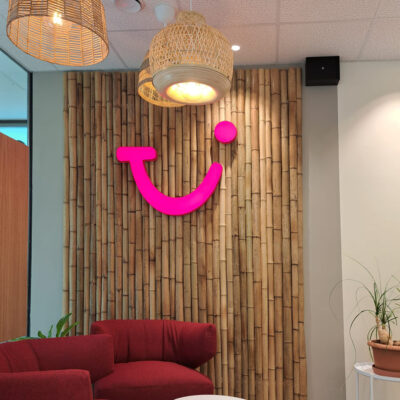

Illuminated logo inside:
- Body made of 30 mm white opal acrylic glass
- Front: red translucent foil
- Side panels: painted
- Small gap between front and red aluminum composite rear panel
- Rear panel slightly larger all around than the illuminated elements
- Illumination with red LED strip
- Light emission from the front and rear between the gap through the rear panel
- Format 1,000 x 800 mm
- Total installation depth 35 mm
- Mounting on bamboo wall
